WSMD0805贴片可恢复保险丝
| 分类 | 自恢复保险丝 |
| SKU | 5000 |
| 单位 | PCS |
产品详情

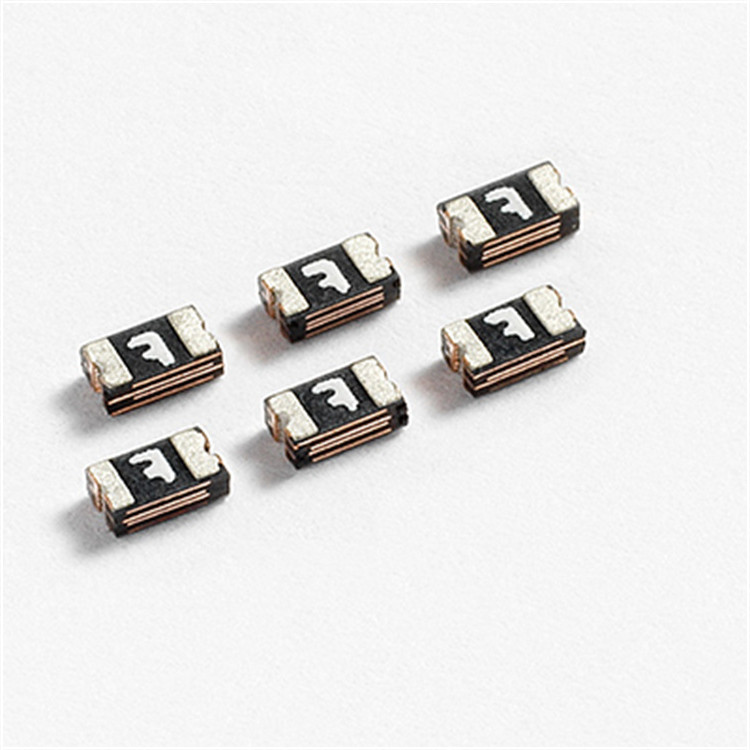

贴片自恢保险丝| SMD PTC FUSE
贴片| SMD
型号 | model: WG0805
Specification Sheet
| Terminal Pad Solderability: |
| Meets EIA Specification RS 186-9E And ANSI/J-STD-002 Category 3. |
| Terminal PAD Materials: Tin-Plated Nickel-copper |
| Lead-Free,RoHS Compliant |
| Marking: |
| R ROHS |
| 1 010Part Identification |
TABLEI.DIMENSIONS
| MODEL | A |
|
B |
|
C |
|
D | E |
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | |
| WSMD0805R010SF | 2.00 | 2.20 | 1.20 | 1.50 | 0.50 | 1.00 | 0.20 | 0.10 |
| WSMD0805R020SF | 2.00 | 2.20 | 1.20 | 1.50 | 0.45 | 1.00 | 0.20 | 0.10 |
| WSMD0805R035SF | 2.00 | 2.20 | 1.20 | 1.50 | 0.45 | 1.00 | 0.20 | 0.10 |
| WSMD0805R050SF | 2.00 | 2.20 | 1.20 | 1.50 | 0.30 | 0.60 | 0.20 | 0.10 |
| WSMD0805R075SF | 2.00 | 2.20 | 1.20 | 1.50 | 0.40 | 1.00 | 0.20 | 0.10 |
| WSMD0805R100SF | 2.00 | 2.20 | 1.20 | 1.50 | 0.50 | 1.10 | 0.20 | 0.10 |
| WSMD0805R110SF | 2.00 | 2.20 | 1.20 | 1.50 | 0.50 | 1.20 | 0.20 | 0.10 |
| WSMD0805R125SF | 2.00 | 2.20 | 1.20 | 1.50 | 0.50 | 1.20 | 0.20 | 0.10 |
Performance Specification
| Model |
Mar King |
V Max |
I Max |
I Hold@25℃ |
I Trip@25℃ |
Pd Typ. |
Maximum Time To Trip | Resistance | Agency Approval | |||
| (V DC) | (A) | (A) | (A) | (W) | Current(A) | Time(Sec) | R1 Min(Ω) | R1 Max(Ω) | UL | TUV | ||
| WSMD0805R010SF | 1 | 15.0 | 100 | 0.10 | 0.30 | 0.5 | 0.5 | 1.00 | 1.000 | 6.000 |
|
|
| WSMD0805R020SF | 2 | 9.0 | 100 | 0.20 | 0.50 | 0.5 | 8.0 | 0.02 | 0.650 | 3.500 |
|
|
| WSMD0805R035SF | 3 | 6.0 | 100 | 0.35 | 0.75 | 0.5 | 8.0 | 0.10 | 0.250 | 1.200 |
|
|
| WSMD0805R050SF | 5 | 6.0 | 100 | 0.50 | 1.00 | 0.5 | 8.0 | 0.10 | 0.150 | 0.850 |
|
|
| WSMD0805R075SF | 7 | 6.0 | 40 | 0.75 | 1.50 | 0.6 | 8.0 | 0.20 | 0.090 | 0.385 |
|
|
| WSMD0805R100SF | 0 | 6.0 | 100 | 1.00 | 1.95 | 0.6 | 8.0 | 0.30 | 0.060 | 0.230 |
|
|
| WSMD0805R110SF | 0 | 6.0 | 100 | 1.10 | 2.20 | 0.6 | 8.0 | 0.30 | 0.060 | 0.210 |
|
|
| WSMD0805R125SF | 12 | 6.0 | 100 | 1.25 | 2.50 | 0.5 | 8.0 | 0.60 | ||||
