产品中心 / 插片式保险丝

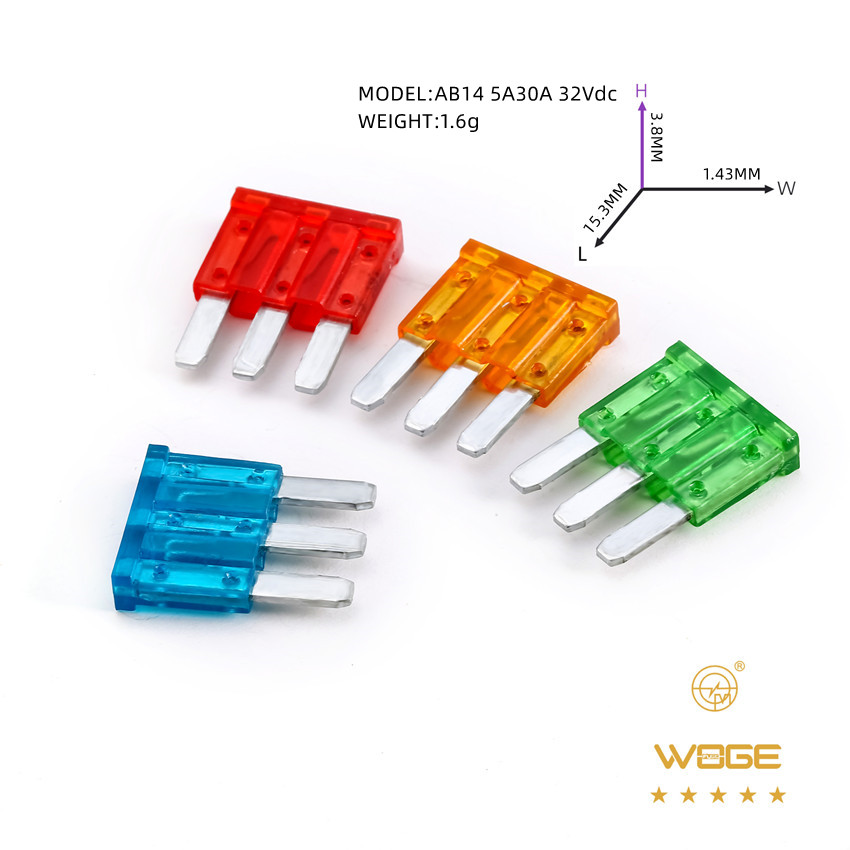

AB14 5A-30A 32Vdc

分类 插片式保险丝
SKU 500
单位 PCS
产品详情

插片保险丝|Blade Fuses  型号|model:AB14 5A-30A 32Vdc   Rohs


速熔|Rapid melting


1.Scope- The fuses shown are for in motor vehicles,boats and trailers,The fuses shown are for in motor vehicles,Power Supply,boats and trailers,to protect ect electricai wiring and equipment。This standard isfor the construction shown and is not intended to restrict thedesign and use of other configurations and materials capableof meeting the vehicle requirements。


1.范围-所显示的熔断器是用于汽车,船和拖车,电源等上保护电气线路和设备。本标准是按展示设计,不是限制设计使用在其它结构和能够满足要求车辆:




Fast Acting, Low Voltage For UP To 32v DC
Material *Body: Plastic.
*Metal: Zinc Alloy
Standard According To SAE J2077
To Permit More Fuses in The Same Amount of Space
Fuses Are Color-Coded For Easy Amperage Identification.


Ordering Information

Part Number Ampere(A) VoltageVDC Body Color
AB14003 3A 32V Violet
AB14004 4A 32V Pink
AB14005 5A 32V Tan
AB14075 7.5A 32V Brown
AB14010 10A 32V Red
AB14015 15A 32V Blue
AB14020 20A 32V Yellow
AB14025 25A 32V Natural
AB14030 30A 32V Green
AB14035 35A 32V Purple

Specifications Opening Time / Pre-arcing Time

In 1.1In 1.35In 2.0In 3.5In 6.0In
1-35A >100Hours Min. Max. Min. Max. Min. Max. Min. Max.
0.75 s 120 s 0.15 s 5 s 0.04 s 0.5 s 0.02 s 0.1 s


注notes:

@环保文件以附件发送,每年更新一次;

@Environmental protection documents shall be sent as attachments and updated once a yea

@安规证书附件发送

@Attachment of safety regulation certificate
