3FLM管状保险丝
| 分类 | 管式保险丝 |
| SKU | 1000 |
| 单位 | PCS |
产品详情
玻璃保险丝| Glass FUSE
插件| DIP

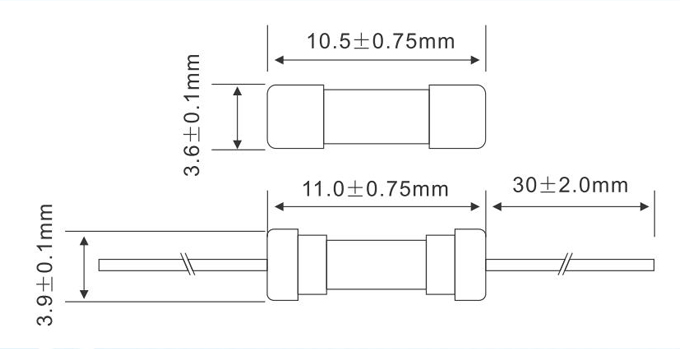

型号 | model: 3.6*10MM
Time-Lag Glass Tube Fuse Series (φ3.6*10MM Time-Lag)
+Approvals
VDE 250mA-6.3A
Recognized Component for Canada and U.S. 250mA-6.3A
CQC 250mA-6.3A
+Interrupting Ratings
35 amperes or 10 x rated current; whichever is greater at 250V AC
Electrical Characteristics
| Rated Current | 1 In | 2In | 2.75 In | 4 In | 10 In | |||
| MIN | MAX | MIN | MAX | MIN | MAX | MIN | MAX | |
| 250mA~5A | 60min | 2min | 400ms | 10sec | 150ms | 3sec | 20ms | 150ms |
+Operating Temperature -55℃ to +125℃
| Cartidge Catalog Number | Ampere Rating | Voltage Rating | Nominal Resistance | Valtage Drop Mel | Nominal Ting L2f |
| (In) | (V) | Cold Ohms | (Mv)MAX | A.Sec | |
| 3FLM.250 | 250mA |
250V |
0.750 | 220 | 0.312 |
| 3FLM.315 | 315mA | 0.484 | 210 | 0.422 | |
| 3FLM.400 | 400mA | 0.310 | 200 | 0.755 | |
| 3FLM.500 | 500mA | 0.252 | 190 | 1.320 | |
| 3FLM.630 | 630mA | 0.170 | 180 | 2.550 | |
| 3FLM.800 | 800mA | 0.113 | 160 | 3.250 | |
| 3FLM 001 | 1A | 0.101 | 140 | 6.950 | |
| 3FLM 1.25 | 1.25A | 0.064 | 130 | 12.10 | |
| 3FLM 1.60 | 1.6A | 0.047 | 120 | 18.20 | |
| 3FLM 002 | 2A | 0.030 | 100 | 20.80 | |
| 3FLM 2.50 | 2.5A | 0.026 | 100 | 32.50 | |
| 3FLM 3.15 | 3.15A | 0.017 | 100 | 40.80 | |
| 3FLM 004 | 4A | 0.015 | 100 | 95.00 | |
| 3FLM 005 | 5A | 0.011 | 100 | 140.0 | |
| 3FLM 6.30 | 6.3A | 0.008 | 100 | 240.0 |
