AB10 1A-30A 58Vdc

分类 插片式保险丝
SKU 1000
单位 PCS
产品详情

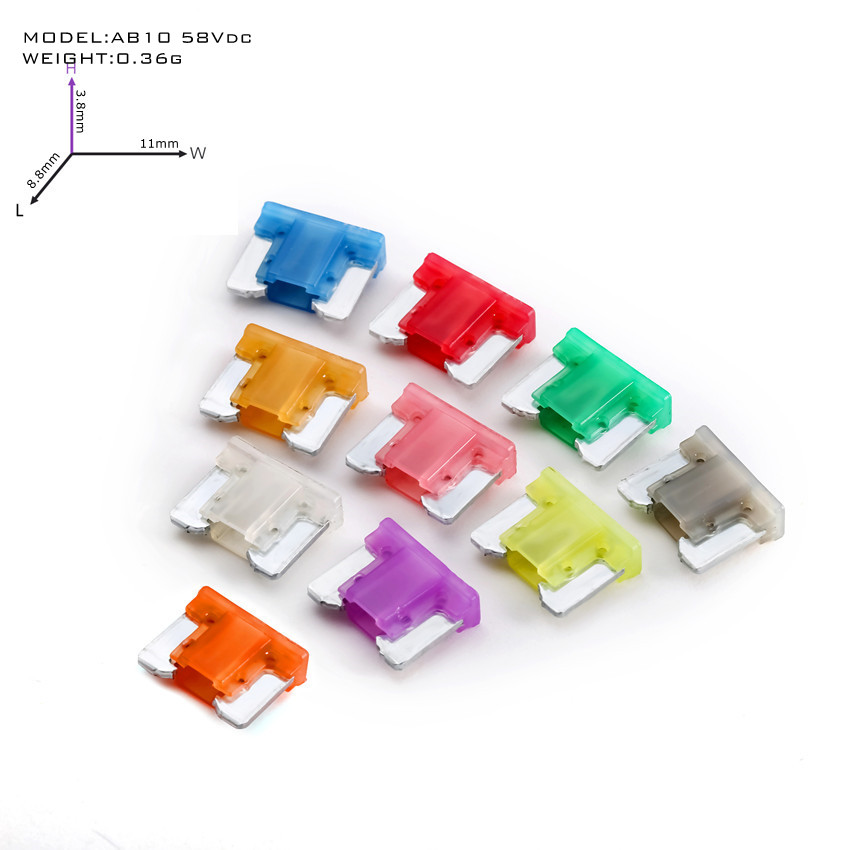

低背保险丝 AB10  1A-30A 58Vdc Rohs


1.Scope- The fuses shown are for in motor vehicles,boats and trailers,The fuses shown are for in motor vehicles,Power Supply,boats and trailers,to protect ect electricai wiring and equipment。This standard isfor the construction shown and is not intended to restrict thedesign and use of other configurations and materials capableof meeting the vehicle requirements。

1.范围-所显示的熔断器是用于汽车,船和拖车,电源等上保护电气线路和设备。本标准是按展示设计,不是限制设计使用在其它结构和能够满足要求车辆;


厂家长期供应引线汽车保险丝座、保险丝、汽车保险丝座、汽车保险丝盒、保险丝座、汽车保险丝座、玻璃保险丝等


Fast Acting, Low Voltage For UP To 32v DC
Material *Body: Plastic.
*Metal: Zinc Alloy
Standard According To SAE J2077
To Permit More Fuses in The Same Amount of Space
Fuses Are Color-Coded For Easy Amperage Identification.


Ordering Information

Part Number Ampere(A) VoltageVDC Body Color
AB10002 2A 32V Gray
AB100033A32V Violet
AB10004 4A 32V Pink
AB10005 5A 32V Tan
AB10075 7.5A 32V Brown
AB10010 10A 32V Red
AB10015 15A 32V Blue
AB10020 20A 32V Yellow
AB10025 25A 32V Natural
AB10030 30A 32V Green
AB10035 35A 32V Purple

Specifications Opening Time / Pre-arcing Time

In 1.1In 1.35In 2.0In 3.5In 6.0In
3-35A >100Hours Min. Max. Min. Max. Min. Max. Min. Max.
0.75 s 1800 s 0.15 s 5 s 0.04 s 0.5 s 0.02 s 0.1 s


注notes:

@环保文件以附件发送,每年更新一次;

@Environmental protection documents shall be sent as attachments and updated once a year;

@安规证书附件发送

@Attachment of safety regulation certificate
