AB19Uxxx 1A-40A 32Vdc UL

分类 插片式保险丝
SKU 500
单位 PCS
产品详情

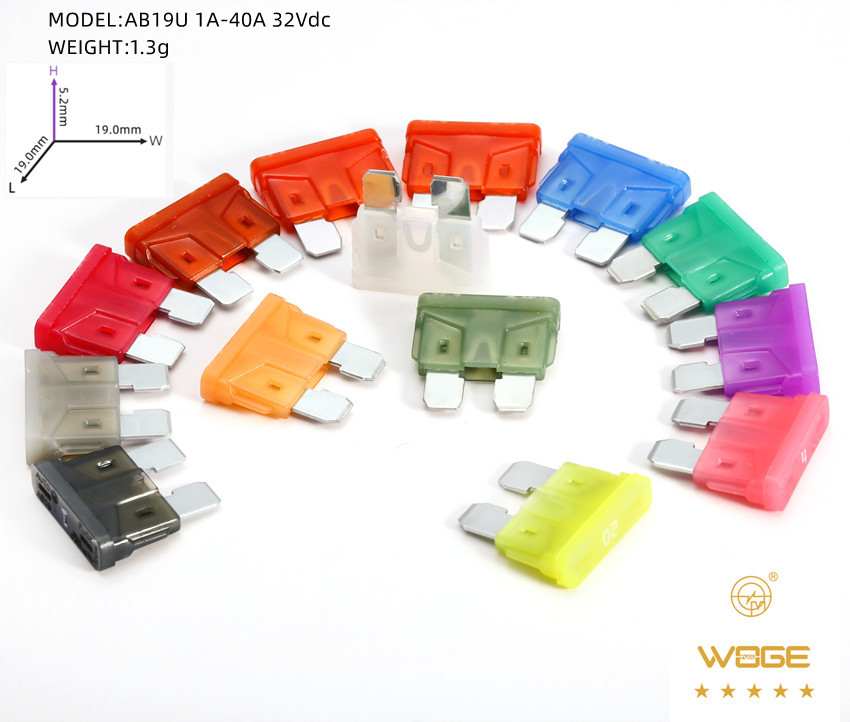

插片汽车保险丝|Blade AUTO Fuses  型号|model:AB19Uxxx 1A-40A 32Vdc UL Rohs


速熔|Rapid melting


1.Scope- The fuses shown are for in motor vehicles,boats and trailers,The fuses shown are for in motor vehicles,Power Supply,boats and trailers,to protect ect electricai wiring and equipment。This standard isfor the construction shown and is not intended to restrict thedesign and use of other configurations and materials capableof meeting the vehicle requirements。


1.范围-所显示的熔断器是用于汽车,船和拖车,电源等上保护电气线路和设备。本标准是按展示设计,不是限制设计使用在其它结构和能够满足要求车辆;



Fast Acting, Low Voltage For UP To 32v DC
Material *Body: Plastic.
*Metal: Zinc Alloy with Tin Plating.
Standard According To SAE J1284
Circuit Protection To Replace Fusible Wire OR Fusible Link.
Fuses Are Color-Coded For Easy Amperage Identification.
Approval Listed by UL Certificated

Ordering Information

Part Number Ampere (A) Voltage (VDC) Body Color
AB19U001 1A 32V Black
AB19U002 2A 32V Gray
AB19U003 3A 32V Violet
AB19U004 4A 32V Pink
AB19U005 5A 32V Tan
AB19U075 7.5A 32V Brown
AB19U010 10A 32V Red
AB19U015 15A 32V Blue
AB19U020 20A 32V Yellow
AB19U025 25A 32V Natural
AB19U030 30A 32V Green
AB19U035 35A 32V Purple
AB19U040 40A 32V Orange
Specifications Opening Time / Pre-arcing Time

In 1.1In 1.35In 2.0In 3.5In 6.0In
1-40A >100Hours Min. Max. Min. Max. Min. Max. Min. Max.
0.75 s 1800 s 0.15 s 5 s 0.04 s 0.5 s 0.02 s 0.1 s

Interruption rating: 1000 Amperes@32V DC


注notes:

@环保文件以附件发送,每年更新一次;

@Environmental protection documents shall be sent as attachments and updated once a yea

@安规证书附件发送

@Attachment of safety regulation certificate
