AB11.Sxxx 1A-35A 32Vdc
| 分类 | 插片式保险丝 |
| SKU | 1000 |
| 单位 | PCS |
产品详情

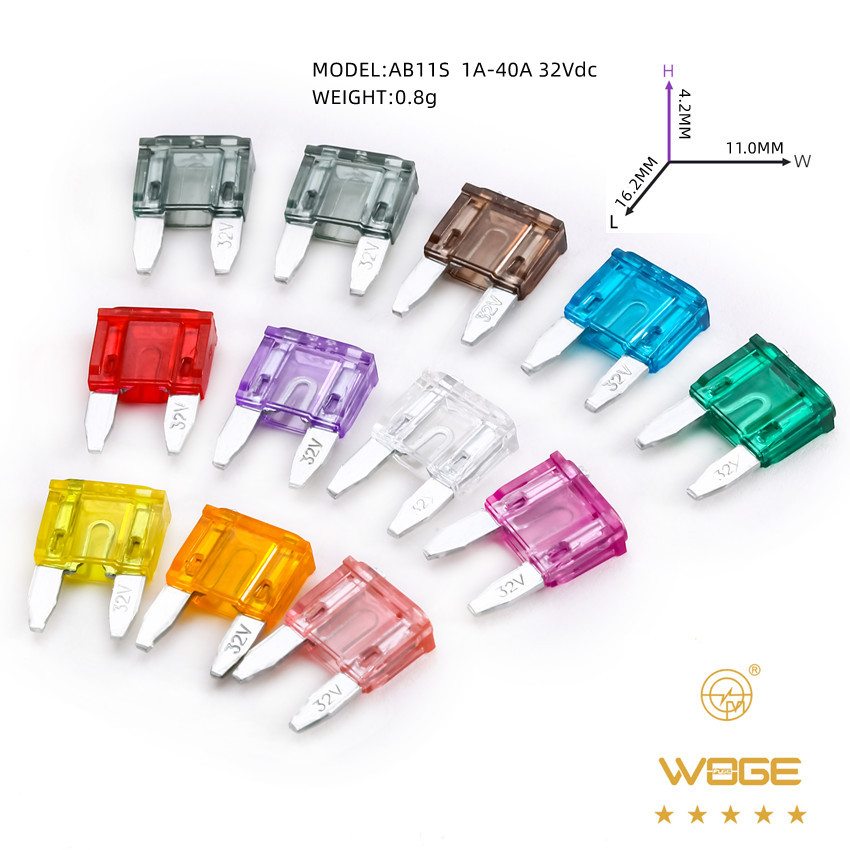

凸点插片汽车保险丝|Blade AUTO Fuses 型号|model:AB11xxx 1A-40A 32Vdc Rohs
速熔|Rapid melting
1.Scope- The fuses shown are for in motor vehicles，boats and trailers，The fuses shown are for in motor vehicles，Power Supply，boats and trailers，to protect ect electricai wiring and equipment。This standard isfor the construction shown and is not intended to restrict thedesign and use of other configurations and materials capableof meeting the vehicle requirements。
1.范围-所显示的熔断器是用于汽车，船和拖车,电源等上保护电气线路和设备。本标准是按展示设计，不是限制设计使用在其它结构和能够满足要求车辆;
| Fast Acting, Low Voltage For UP To 32v DC | |
| Material | *Body: Plastic. *Metal: Zinc Alloy |
| Standard | According To SAE J2077 |
| To Permit More Fuses in The Same Amount of Space | |
| Fuses Are Color-Coded For Easy Amperage Identification. | |
Ordering Informatio
| Material number | Current Rating | Housing Color | Volt | Safety certification No | |
| 物料编号 | 额定值 | 颜色 | 电压 | 安规认证号 | |
| AB11001 | 1 | 深灰色 | / | ||
| AB11002 | 2 | 灰色 | / | ||
| AB11003 | 3 | 紫红色 | / | ||
| AB11004 | 4 | 粉红色 | / | ||
| AB11005 | 5 | 黄褐色 | / | ||
| AB1107.5 | 7.5 | 棕色 | / | ||
| AB11010 | 10 | 红色 | 32Vdc | / | |
| AB11015 | 15 | 蓝色 | / | ||
| AB11020 | 20 | 黄色 | | / | |
| AB11025 | 25 | 白色 | | / | |
| AB11030 | 30 | 绿色 | | / | |
| AB11035 | 35 | 深紫色 | | / | |
| In | 1.1In | 1.35In | 2.0In | 3.5In | 6.0In | ||||
| 1-35A | >100Hours | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
| 0.75 s | 1800 s | 0.15 s | 5 s | 0.04 s | 0.5 s | 0.02 s | 0.1 s | ||
Interruption rating: 1000 Amperes@32V DC
注notes：
@环保文件以附件发送，每年更新一次；
@Environmental protection documents shall be sent as attachments and updated once a yea
@安规证书附件发送
@Attachment of safety regulation certificate
