W250V插件可恢复型保险丝
| 分类 | 自恢复保险丝 |
| SKU | |
| 单位 |
产品详情
厂家长期供应引线汽车保险丝座、保险丝、汽车保险丝座、保险丝座、汽车保险丝座、玻璃保险丝等
Features

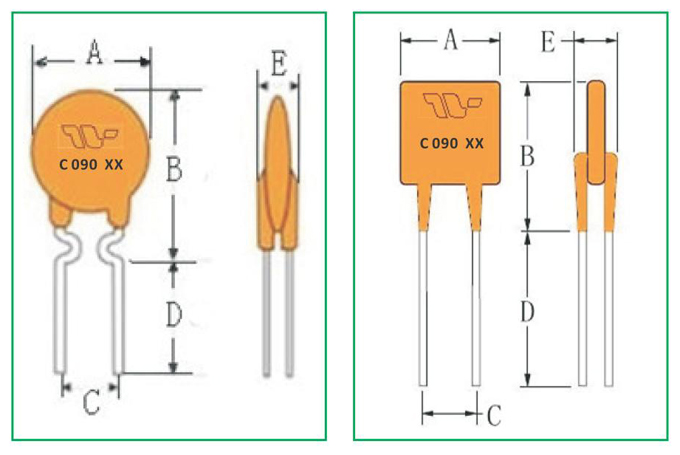

| Radial Leaded Devices |
| Cured,Flame retardant epoxy polymer insulating material meets UL 94V-0 requirements |
| Bulk Package, or Tape and reel available on most models |
| Agency recognition: UL on approval |
Applications
| Almost Anywhere There Is A Low Voltage Power Supply, Up To 16V And A Load To Be Protected, Including: |
| Personal computer |
| Toys |
| Medical electronics |
| Personal care product |
Electrical Characteristics
| P/N | IH(A) | IT(A) | V Max(V) | I Max(A) | V Max(A) | T Trip | Pd Typ(W) | Resistance(Ω) | |||
| (A) | (Sec.) | R Min | R Max | R1 Max | |||||||
| W250-002 | 0.020 | 0.045 | 60 | 3.0 | 250 | 1.0 | 0.1 | 1.0 | 65 | 145 | 240 |
| W250-004 | 0.040 | 0.080 | 60 | 3.0 | 250 | 0.50 | 1.0 | 1.0 | 24.0 | 65.0 | 97.5 |
| W250-006 | 0.060 | 0.120 | 60 | 3.0 | 250 | 0.50 | 2.0 | 1.0 | 22.0 | 36.0 | 56.0 |
| W250-008 | 0.080 | 0.160 | 60 | 3.0 | 250 | 0.35 | 4.0 | 1.0 | 14.0 | 22.0 | 33.0 |
| W250-009 | 0.09 | 0.22 | 60 | 3.0 | 250 | 1.0 | 1.0 | 1.0 | 9.7 | 20.6 | 33.0 |
| W250-011 | 0.110 | 0.220 | 60 | 3.0 | 250 | 1.0 | 2.0 | 1.0 | 6.0 | 12.0 | 18.0 |
| W250-012 | 0.12 | 0.24 | 60 | 3.0 | 250 | 1.00 | 3.0 | 1.0 | 6.0 | 10.0 | 16.0 |
| W250-012U | 0.12 | 0.24 | 60 | 3.0 | 250 | 1.00 | 1.5 | 1.0 | 6.0 | 10.0 | 16.0 |
| W250-014 | 0.145 | 0.29 | 60 | 3.0 | 250 | 1.00 | 2.5 | 1.0 | 3.0 | 6.0 | 14.0 |
| W250-014U | 0.145 | 0.29 | 60 | 3.0 | 250 | 1.0 | 2.5 | 1.0 | 3.5 | 6.5 | 12.0 |
| W250-018 | 0.18 | 0.54 | 60 | 3.0 | 250 | 3.0 | 1.5 | 1.8 | 1.0 | 2.2 | 4.0 |
| W250-018U | 0.18 | 0.54 | 60 | 3.0 | 250 | 3.0 | 1.5 | 1.8 | 1.0 | 2.2 | 4.0 |
| W250-020 | 0.2 | 0.6 | 60 | 3.0 | 250 | 3.0 | 5.0 | 1.8 | 1.0 | 2.2 | 4.0 |
| W250-030 | 0.30 | 0.60 | 60 | 3.0 | 250 | 3.0 | 6.0 | 1.8 | 1.0 | 2.2 | 3.50 |
| W250-040 | 0.400 | 0.800 | 60 | 5.5 | 250 | 3.0 | 8 | 1.8 | 0.80 | 1.60 | 3.20 |
| W250-050 | 0.50 | 1.00 | 60 | 6.0 | 250 | 3.0 | 10 | 3.0 | 0.56 | 1.40 | 2.52 |
| W250-060 | 0.60 | 1.20 | 60 | 8.0 | 250 | 3.0 | 18 | 3.6 | 0.32 | 1.10 | |
